Smooth Air – Rack Mount DX Precision Cooling
The SmoothAir rack precision cooling series is engineered for energy efficiency and reliability in small to medium-sized data centers, edge spaces, and network closets. Available in top-packaged (2.5-5.5kW), rack-split (3.9-12.8kW), and bottom-packaged (3.5kW) configurations, these units feature inverter compressors and EC fans for precise temperature control and lower operating costs.
The intelligent control system supports web, SNMP, and Modbus remote monitoring, with 1,000+ alarm records and 7-day data logging. Green R410A refrigerant ensures zero ozone depletion potential (ODP). A built-in condensate evaporation system simplifies maintenance and prevents leakage.
Application: Network Closets, Small Server Room, Edge Spaces, etc.
Product Features & Technical Specifications
2.5-5.5kW (9U-12U)

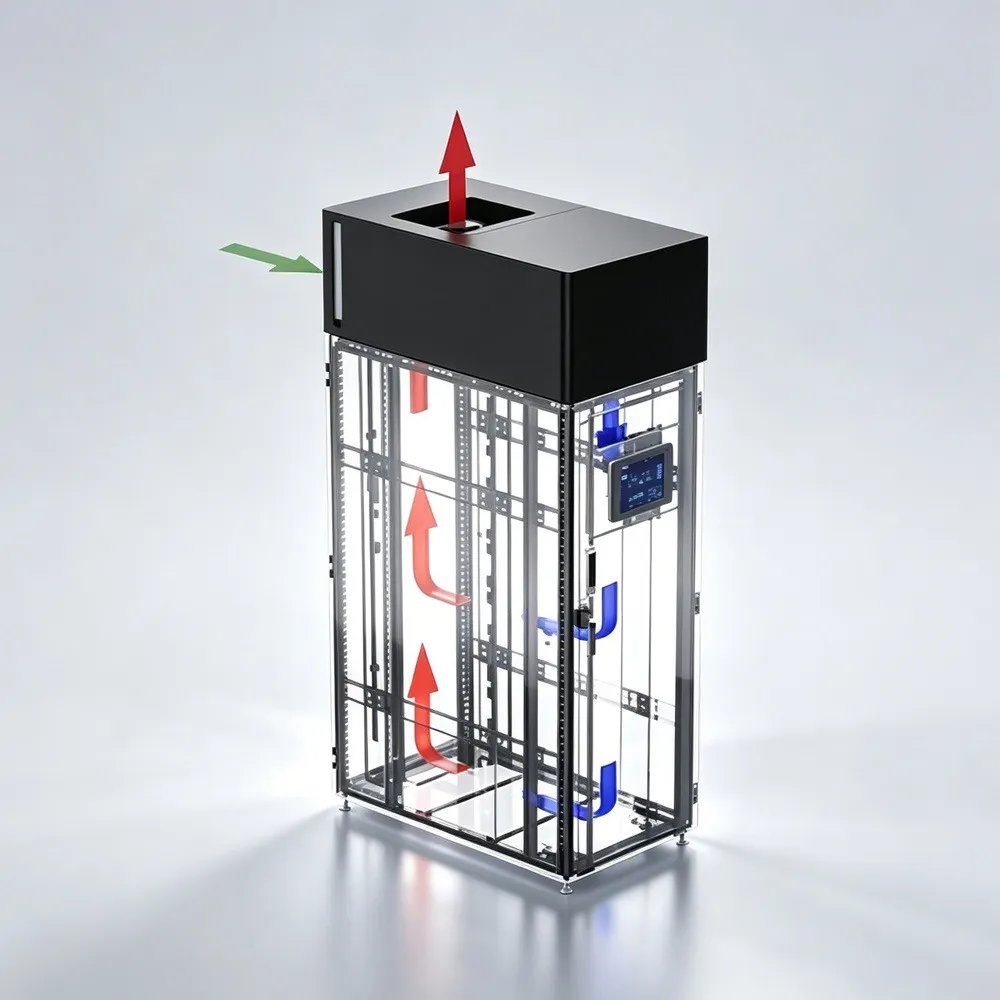

Top mount packaged design, no occupying of IT space, easy for installation, service and shipping.
2.5-5.5kW (9U-12U)
Top mount packaged design, no occupying of IT space, easy for installation, service and shipping.
2.5-5.5kW (9U-12U)
Top mount packaged design, no occupying of IT space, easy for installation, service and shipping.
Energy Efficiency
- Stable temperature control per heating load by adjusting compressor output.
- Reducing energy cost and improve compressor working life.
- Green refrigerant R410A no ODP effect.
- Capacity adjustable 30%-100%.
Intelligent Control System
- Industry leading smart control system, with insightful sensor data and intelligent control logics.
- All digital control to major components, maintaining optimum working status, and flexible adjustment per onsite working conditions.
- 1000+ alarm records, and 7days history pressure curve records, 7days history temperature curve records.
- Smart monitoring protocols: Web/SNMP/Modbus/Bac-net/Email/Dry contact/IPV6.
- Teamwork function including Master/Slave Working mode, Master Control mode and Force Working mode.
- Built in web server support visit with web-browser from computers and mobile devices, can view ,control unit through web.
Condensate evaporation System
Built in the cooling unit, helps the condensate to evaporate into steam, which is discharged out of the machine through the fan of the condenser. preventing any dripping on the inside and outside of the unit.
(Only used for packaged type cooling)
Key Components
Inverter Compressor
- Stable temperature control per heating load by adjusting compressor output.
- Reducing energy cost and improve compressor working life.
- Green refrigerant R410A no ODP effect.
- Capacity adjustable 30%-100%.
EC Fans
- Best in class design and reliability.
- Highest efficiency EC Fan system.
- Speed adjustable 0%-100%.
- Direct drive system no belts easier replacement and service.
- Higher external static flexible for special application.
Electronic Expansion Valve
- Automatically modulating refrigerant flow per system requirement.
- Better COP performance during low temperature season comparing TEV system.
- Better refrigerant flow feeding during compressor startup, to reach higher reliability of compressor working.
