Smooth Air – Rear Door Heat Exchanger
Ideal for high-density environments like AI, HPC, and edge computing, the SmoothAir rear door heat exchanger delivers up to 30kW of cooling capacity while adding less than 380mm of depth to existing racks. Its DX-based design eliminates the need for complex water loops or manifolds, simplifying installation and maintenance.
The onboard smart control system, accessible via Web, SNMP, or Modbus, provides real-time monitoring and remote management for optimized energy efficiency and reliable operation.
Ideal for: Micro data center, small-medium-large server room, edge space, etc.
Key Advantages & System Highlights
Flexibility
- Full sensors of Refrigeration System deep information.
- Easy remote debug and support to customer with confidence.
- No need bring pressure gauge during service and installations.
- Supports further advanced analysis with full perspective system data.
Efficiency
- Built in Teamwork function, supports master/standby working, and scheduled rotation.
- Group 8 units as standard, maximum 200 units customization.
- RJ45 network cable connection no need extra hardware.
- Supports master control mode by following master unit logic.
Relibility
- Built in web page supports remote by browser.
- Support Modbus-RTU protocol by standard.
- Support SNMP, Email, Modbus-TCP, BAC-Net, IPV6 for remote monitoring by option.

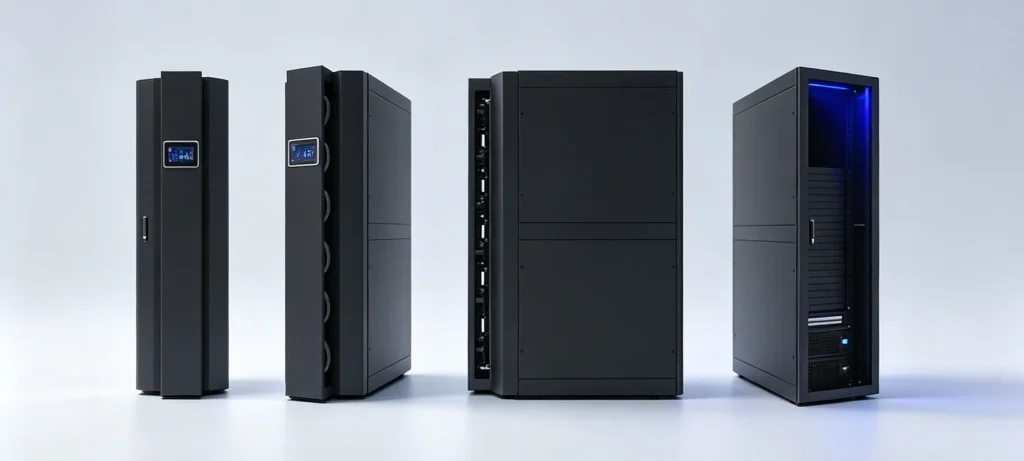

Slim and Flexible of Modularized Design
Available in three widths and three depths, air flow front / side discharge, and adjustable vent air baffle. Allows us to provide a customized fit for different data center configurations. Suitable for racks from any manufacturers, you can also easily expand or reconfigure your cooling infrastructure without disrupting the existing setup.
Ideal for High Density Application
The growing demand for expansive data storage and computing capacity confronts data centers with a critical challenge. Traditional cooling solutions struggle to cope with rasing heat densities. The RDx system, functioning as a rear-mounted radiator door on the rack, facilitates efficient heat exchange with cooling gas or water. This minimizes the risk of hot air recirculation within the rack, ensuring optimal operating conditions for data servers.
Optimized Design
- Less than 380mm additional rack depth, Adaptable to all height types of Racks.
- DX based design, no need complex water loops and manifolds.
- Upto 30kW cooling capacity and optimized cooling air distribution, to ensure even cooling effects within the high density rack.
- Seamless integration with IT rack system, no need to separate hot/cold aisles.
Intelligent Control System
- Industry leading smart control system, with insightful sensor data and intelligent control logics.
- All digital control to major components, maintaining optimum working status, and flexible adjustment per onsite working conditions.
- 1000+ alarm records, and 7days history pressure curve records, 7days history temperature curve records.
- Smart monitoring protocols: Web/SNMP/Modbus/Bac-net/Email/Dry contact/IPV6.
- Built in web server support visit with web-browser from computers and mobile devices, can view ,control unit through web.
Key Components
Inverter Compressor
- Capacity adjustable 30%-100%.
- Stable working and improved compressor life by Modulating compressor speed.
- No on/off inrush working mode.
- Green refrigerant R134A no ODP effect.
EC Fans
- Best in class design and reliability.
- Highest efficiency EC Fan system.
- Speed adjustable 0%-100%.
- Direct drive system no belts easier replacement and service.
- Higher external static flexible for special application.
Electronic Expansion Valve
- Automatically modulating refrigerant flow per system requirement.
- Better COP performance during low temperature season comparing TEV system.
- Better refrigerant flow feeding during compressor startup, to reach higher reliability of compressor working.
